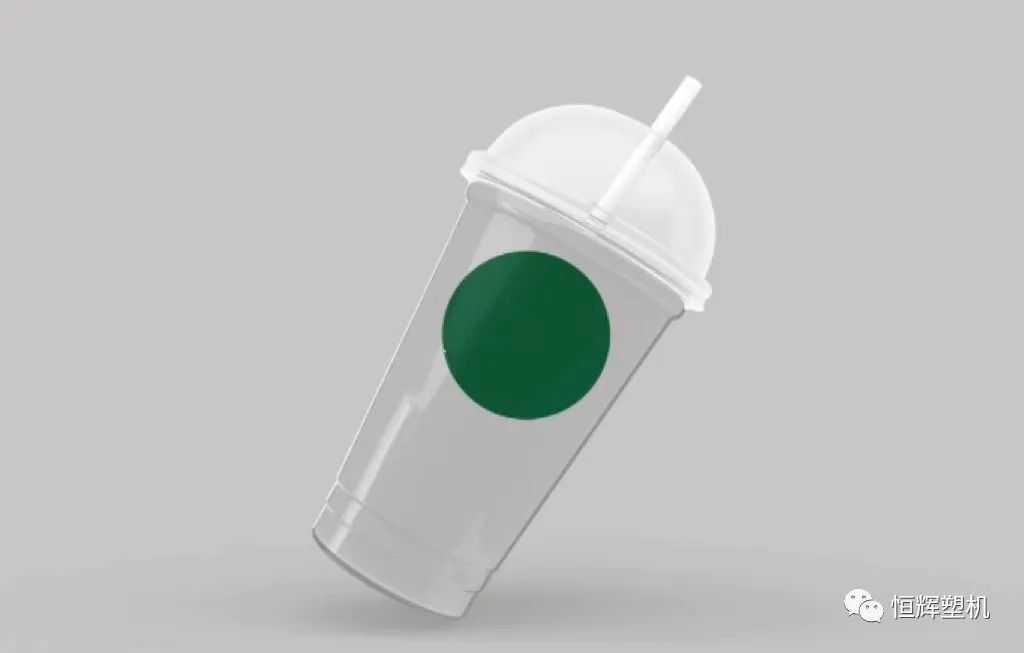

Henghui Plastic machine application case disposable milk tea cup

Henghui Plastic machine application case disposable milk tea cup

Only milk tea can relieve sorrow

Milk tea is the best way to cope with a tired life

A cup of fragrant and sweet milk tea can instantly soothe tired hearts

In life, milk tea means comfort, pleasure, enjoyment, relaxation...

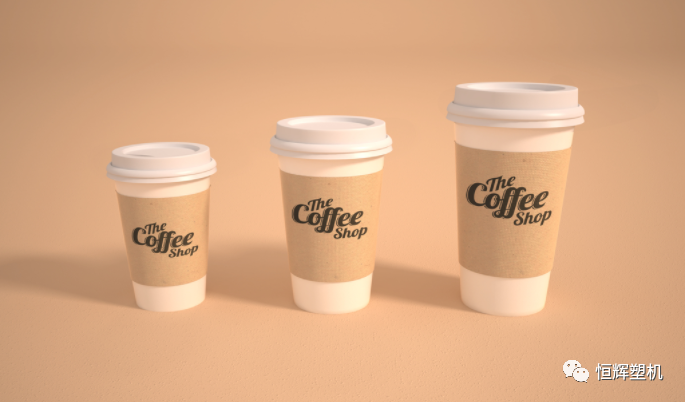

Increasingly sophisticated injection molding technology makes disposable plastic cups gain more advantages than paper cups: changeable shape, stable carrying capacity, no odor when heated, rapid heat resistance, exquisite film labeling, transparent cup walls make food more attractive.

Henghui Plastic machine disposable milk tea cup injection molding solution

The disposable milk tea cup is produced by an injection molding machine. The production principle is that raw material polypropylene particles melt in the injection molding machine screw at high temperature, and then inject them into the film cavity. Once the molten plastic enters the mold, it is cold and shaped according to the mold cavity, and the resulting shape is often the final product, which is a one-time injection molding. No additional processing is required before use or use as a final product. Many details, such as bumps, ribs, and threads, can be molded in a single injection molding operation. The injection molding machine has two basic components: the injection device for melting and feeding the plastic into the mold and the mold closing device for locking the mold.

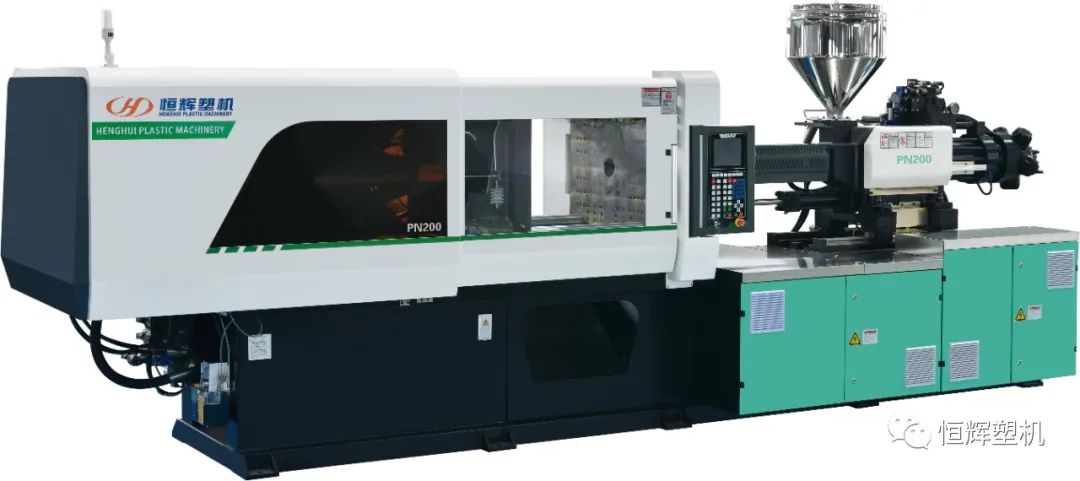

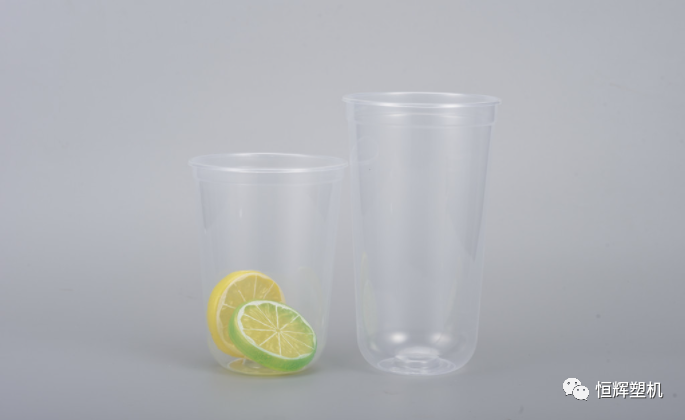

Product name: disposable milk tea cup Production model: PN series high-speed injection molding machine number of holes: one eight product weight: 10g (single) Molding material: PP molding cycle: 6.3 seconds

◆ Henghui Plastic machine PN series can be used to produce a variety of disposable food packaging products (coffee cups, jelly cups, yogurt cups, packaging boxes, etc.), widely used in a variety of PP\PET\PE materials.

◆ Efficient whole machine reaction, high speed, high response, injection speed response time 35ms, multi-functional synchronous operation, auxiliary machine to achieve fully automatic injection molding, production efficiency than the ordinary machine doubled.

◆ High reliability mechanical operation, system control to achieve self-monitoring and protection, so that the whole machine safe operation, durable performance.

◆ High rigidity mold locking device, equipped with wide template, to achieve high precision and stable injection molding, product modeling is changeable.

◆ High strength frame design, the use of reinforced thick wall steel profile combination, reduce the vibration of fast opening and closing mold.

◆ The use of high response, low inertia servo motor, and equipped with high-precision multi-turn absolute encoder and injection pressure sensor, greatly improve the injection accuracy.

◆ Injection pressure detection - load sensor resolution increased to 5 times the original, pressure control at 0.1MPa, high-precision encoder, position control at 0.03mm, suitable for the production of ultra-precision products.

Henghui Plastic Machine is a technology enterprise focusing on breaking through research and development technology, providing customers with intelligent manufacturing one-stop solutions, leading the development of injection molding industry.
